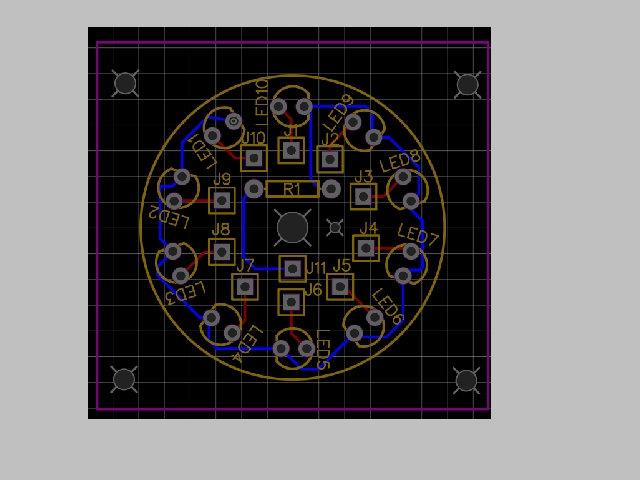

It's just a set of LED's, comon cathode, with a common resistor
I made it as a square board, but in another project i used a holesaw to make them into discs
I had to replace the pilot drill with something smaller
If you have access to a lathe or are creative with a deill press you can do it that way
This PCB could be used with the counter
Download Gerber file here
